Test track

TestTrack1


A unique feature of the roof based laboratory of the Nottingham Geospatial Building is a fixed track designed for dynamic positioning system research and testing.

Equipped with a custom designed remote controlled locomotive that has been designed to carry a navigation grade POSRS inertial unit the track is a total of 120m in length with a 7¼” (184.15mm) gauge. It provides a multi-sensor platform with the capability for sub-centimetre level accuracy for developing and testing integrated navigation and positioning solutions



System specification

  • Track length 120m
  • Speed Variable up to 7.2 km/hr
  • Locomotive mass 400kg
  • Payload mass 100kg
TestTrack3

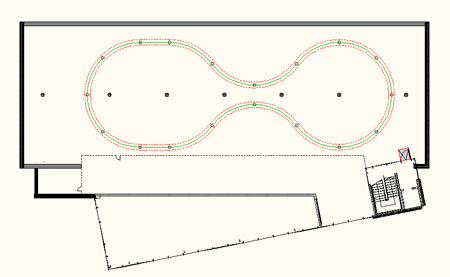

The test track layout

testtrack2

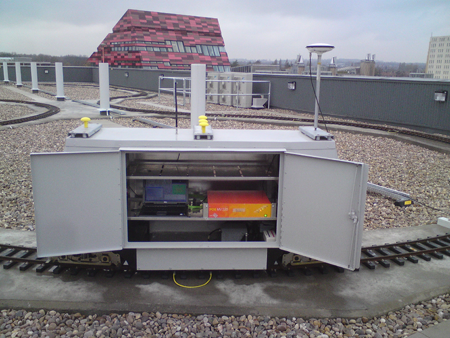

The inside view
